On receipt of an unsolicited input, how does CICS® determine
which transaction to run? Typically the previous task with the same
principal facility determines what transaction CICS runs next, using the TRANSID
option on its final RETURN.
This situation is almost always the case in a pseudoconversational
transaction sequence, and typically in menu-driven applications as
well. Failing that, and in any case to get a sequence started, CICS
interprets the first few characters of the input as a transaction
code. However, it is more complicated than that; the exact process
goes as follows. The step numbers indicate the order in which the
tests are made and refer to Figure 1,

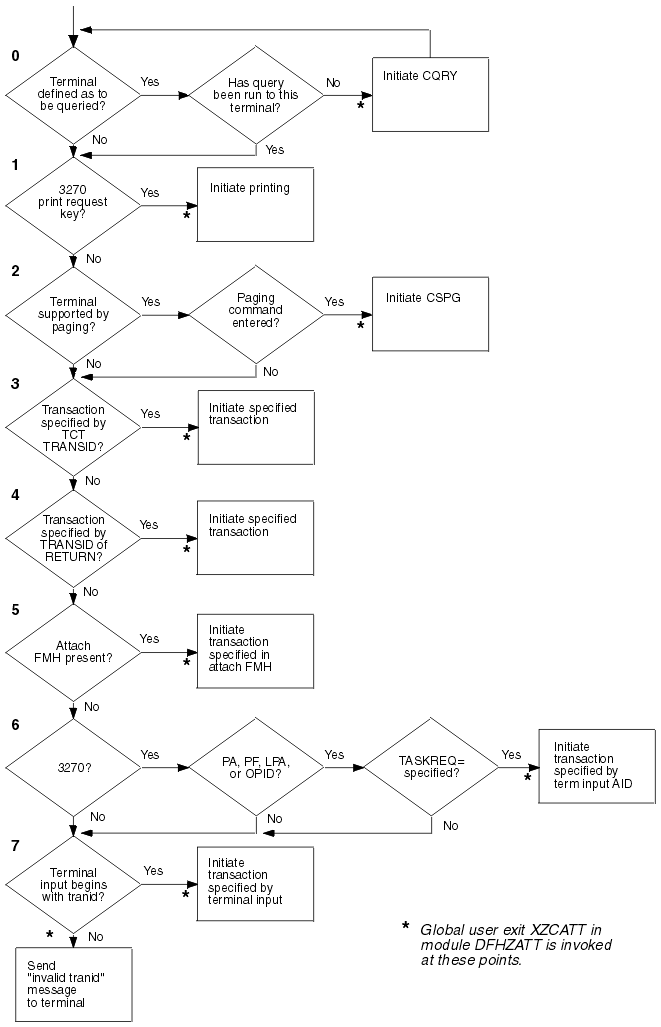

a diagram of this logic. Figure 1. Determining which
transaction to execute
0.
On the first input from a terminal, CICS sometimes schedules a
preliminary task before creating one to process the input. This task
runs the CICS-supplied query transaction, CQRY, which causes
the terminal to transmit an encoded description of some of its hardware
characteristics—extended attributes, character sets, and so on.
CQRY
allows the system programmer to simplify maintenance of the terminal
network by omitting these particulars from the terminal definitions. It
occurs only if the terminal definition so specifies, and has no effect on
the subsequent determination of what transaction to use to process
the input, which goes as follows.
1.
If the terminal is a 3270 and the input is the “print request
key”, the CICS-supplied transaction that prints the contents of the
screen, CSPP, is initiated. See CICS print key in Printing display screens for more information about this
feature. For this purpose, a 3270 logical unit or any other
device that accepts the 3270 data stream counts as a 3270.
2.
If full BMS support is present, the terminal is of a type supported
by BMS terminal paging, and the input is a paging command, the CICS-supplied
transaction CSPG is initiated to process the request. BMS support
levels are explained in BMS support levels,
and the same section contains a list of the terminals that BMS supports.
The PGRET, SKRxxxx, PGCHAIN, PGCOPY, and PGPURGE options in the system
initialization table define the paging commands. As paging requires
full BMS, this step is skipped if the CICS system contains less than
that level.
3.
If the terminal definition indicates that a specific transaction should
be used to process all unsolicited inputs from that terminal, the
indicated transaction is executed. (If present, this information appears
in the TRANSACTION attribute of the TERMINAL definition.)
4.
If the previous task at the terminal specified the TRANSID option
of the RETURN command that ended it, the transaction named is executed.
5.
If an attach function management header is present in the input,
the attach names in the header are converted to a four-character CICS
transaction identifier, and that transaction is executed.
6.
If the terminal is a 3270, and the attention identifier is defined
as a transaction, that transaction is executed. Attention keys in Input from a 3270 terminal explains attention identifiers.
You define one as a transaction identifier with the TASKREQ attribute
of the corresponding TRANSACTION definition.
7.
If all the preceding tests fail, the initial characters of the input
are used to identify the transaction to be executed. The characters
used are the first ones (up to four) after any control information
in the data stream and before the first field separator character or
the next 3270 Control Character (X'00' to X'3F').
Field separators are defined in the FLDSEP option of the system initialization
table (the default is a blank).
If there are no such characters
in the input, as occurs when you use the CLEAR key, for example, or
if there is no transaction definition that matches the input, CICS
cannot determine what transaction to execute and sends an invalid
transaction identification message to the terminal.
Note: This logic for deciding which transaction to execute applies
only to tasks initiated to process unsolicited inputs. For automatic
transaction initiation, the transaction is always known. You specify
it in the TRANSID option when you create a task with a START or RETURN
IMMEDIATE. Similarly, you specify what transaction should be used
to process a transient data queue in the queue definition. Tasks created
to route messages always execute the CICS-supplied transaction CSPG.
