A state diagram and a flowchart can be used to illustrate how to perform restore or retrieve operations.
The arrow pointing from "In Get Object" to dsmEndGetData indicates that you can send a dsmEndGetData call after a call to dsmGetObj or dsmGetData. You might need to do this if an error condition occurred while getting an object from Tivoli Storage Manager storage and you want to stop the operation. In normal circumstances, however, call dsmEndGetObj first.

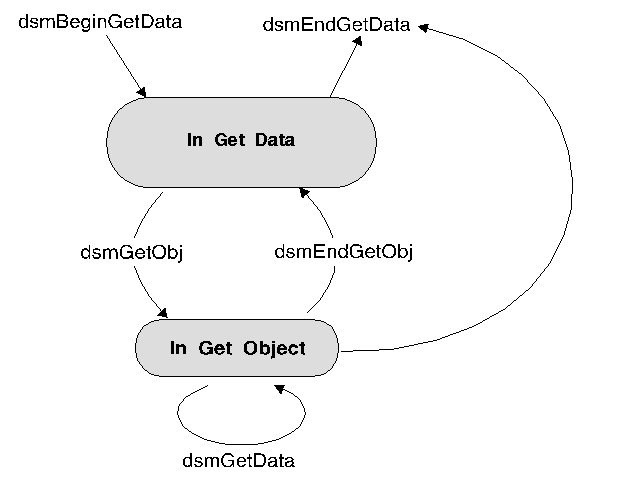

Figure 1. State diagram for restore
and retrieve operations
Figure 2 displays the flowchart for performing restore or retrieve operations.
Figure 2. Flowchart for restore and
retrieve operations
