DB2 Version 9.7 for Linux, UNIX, and Windows

Data organization schemes

With the introduction of table partitioning, a DB2® database offers a three-level data organization scheme. There are three clauses of the CREATE TABLE statement that include an algorithm to indicate how the data is to be organized.

The following three clauses demonstrate the levels of data organization that can be used together in any combination:

This syntax allows consistency between the clauses and allows for future algorithms of data organization. Each of these clauses can be used in isolation or in combination with one another. By combining the DISTRIBUTE BY and PARTITION BY clauses of the CREATE TABLE statement data can be spread across database partitions spanning multiple table spaces. This approach allows for similar behavior to the Informix® Dynamic Server and Informix Extended Parallel Server hybrid.

In a single table, you can combine the clauses used in each data organization scheme to create more sophisticated partitioning schemes. For example, partitioned database environment is not only compatible, but also complementary to table partitioning.

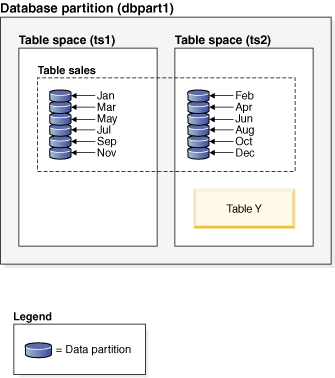

Figure 1. Demonstrating the table partitioning organization scheme where a table representing monthly sales data is partitioned into multiple data partitions. The table also spans two table spaces (ts1 and ts2).
Data from table sales is partitioned across ts1 and ts2. Rows with similar values are grouped in the same data partition.

Figure 2. Demonstrating the complementary organization schemes of database partitioning and table partitioning. A table representing monthly sales data is partitioned into multiple data partitions, spanning two table spaces (ts1 and ts2) that are distributed across multiple database partitions (dbpart1, dbpart2, dbpart3) of a database partition group (dbgroup1).
Data from table SALES is distributed across multiple database partitions and partitioned across table spaces ts1 and ts2.

The salient distinction between multidimensional clustering (MDC) and table partitioning is multi-dimension versus single dimension. MDC is suitable to cubes (that is, tables with multiple dimensions), and table partitioning works well if there is a single dimension which is central to the database design, such as a DATE column. MDC and table partitioning are complementary when both of these conditions are met. This is demonstrated in Figure 3.

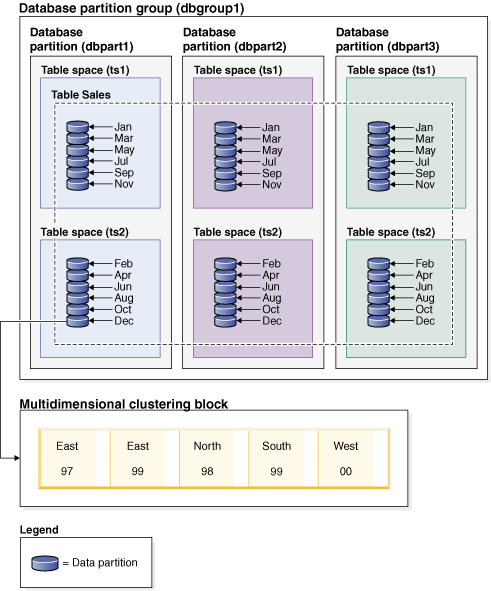

Figure 3. A representation of the database partitioning, table partitioning and multidimensional organization schemes where data from table SALES is not only distributed across multiple database partitions, partitioned across table spaces ts1 and ts2, but also groups rows with similar values on both the date and region dimensions.
Shows complementary conditions maximizing the effectiveness of the combined organization schemes.

There is another data organization scheme which cannot be used with any of the schemes that were listed previously. This scheme is ORGANIZE BY KEY SEQUENCE. It is used to insert each record into a row that was reserved for that record at the time of table creation (Range-clustered table).

Data organization terminology

Database partitioning
A data organization scheme in which table data is divided across multiple database partitions based on the hash values in one or more distribution key columns of the table, and based on the use of a distribution map of the database partitions. Data from a given table is distributed based on the specifications provided in the DISTRIBUTE BY HASH clause of the CREATE TABLE statement.
Database partition
A portion of a database on a database partition server consisting of its own user data, indexes, configuration file, and transaction logs. Database partitions can be logical or physical.
Table partitioning
A data organization scheme in which table data is divided across multiple data partitions according to values in one or more partitioning columns of the table. Data from a given table is partitioned into multiple storage objects based on the specifications provided in the PARTITION BY clause of the CREATE TABLE statement. These storage objects can be in different table spaces.
Data partition
A set of table rows, stored separately from other sets of rows, grouped by the specifications provided in the PARTITION BY RANGE clause of the CREATE TABLE statement.
Multidimensional clustering (MDC)
A table whose data is physically organized into blocks along one or more dimensions, or clustering keys, specified in the ORGANIZE BY DIMENSIONS clause.

Benefits of each data organization scheme

Understanding the benefits of each data organization scheme can help you to determine the best approach when planning, designing, or reassessing your database system requirements. Table 1 provides a high-level view of common customer requirements and shows how the various data organization schemes can help you to meet those requirements.

Table 1. Using table partitioning with the Database Partitioning Feature
Issue Recommended scheme Explanation
Data roll-out Table partitioning Uses detach to roll-out large amounts of data with minimal disruption
Parallel query execution (query performance) Database Partitioning Feature Provides query parallelism for improved query performance
Data partition elimination (query performance) Table partitioning Provides data partition elimination for improved query performance
Maximization of query performance Both Maximum query performance when used together: query parallelism and data partition elimination are complementary
Heavy administrator workload Database Partitioning Feature Execute many tasks for each database partition
Table 2. Using table partitioning with MDC tables
Issue Recommended scheme Explanation
Data availability during roll-out Table partitioning Use the DETACH PARTITION clause to roll out large amounts of data with minimal disruption.
Query performance Both MDC is best for querying multiple dimensions. Table partitioning helps through data partition elimination.
Minimal reorganization MDC MDC maintains clustering, which reduces the need to reorganize.
Note: Table partitioning is now recommended over UNION ALL views.
