5887 disk drive enclosure locations
Use this information to help you map a location code to a position on the unit.
Note: The known logical location codes for this unit are
listed next to the corresponding physical location in the following
information. If you are working with a logical location code for this
unit and it is not listed in the following information, contact your
next level of support.
The following diagrams show the field replaceable unit (FRU) layout in the system. Use these diagrams with the following tables.

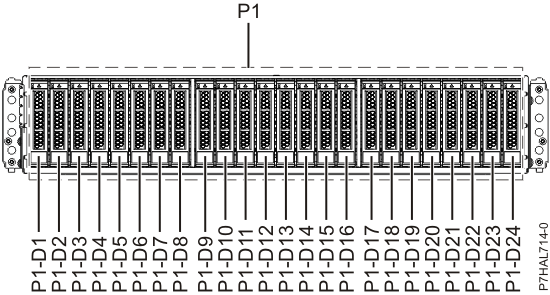

Figure 1. Front view
Figure 2. Rear view
The following table provides location codes for parts that make up the server.
| Failing item name | Physical location code | Identify LED | Failing item removal and replacement procedures |
|---|---|---|---|
| System unit | Un | ||
| ESM | |||
| Event Services Manager (ESM) A | Un-P1-C1 | Yes | See Removing and installing an enclosure services manager. |
| ESM B | Un-P1-C2 | Yes | |
| ESM A connector | Un-P1-C1-T1 | ||
| ESM A connector | Un-P1-C1-T2 | ||
| ESM A connector | Un-P1-C1-T3 | ||
| ESM B connector | Un-P1-C2-T1 | ||
| ESM B connector | Un-P1-C2-T2 | ||
| ESM B connector | Un-P1-C2-T3 | ||
| Power supplies | |||
| Power supply | Un-P1-E1 | Yes | See Removing and installing a power supply. |
| Power supply | Un-P1-E2 | Yes | |
| Midplane | |||
| Midplane | Un-P1 | Yes | See Removing and installing a midplane. |
| Device physical locations | |||
| Disk drive 1 | Un-P1-D1 | Yes | See Removing and installing a disk drive. |
| Disk drive 2 | Un-P1-D2 | Yes | |
| Disk drive 3 | Un-P1-D3 | Yes | |
| Disk drive 4 | Un-P1-D4 | Yes | |
| Disk drive 5 | Un-P1-D5 | Yes | |
| Disk drive 6 | Un-P1-D6 | Yes | |
| Disk drive 7 | Un-P1-D7 | Yes | |
| Disk drive 8 | Un-P1-D8 | Yes | |
| Disk drive 9 | Un-P1-D9 | Yes | |
| Disk drive 10 | Un-P1-D10 | Yes | |
| Disk drive 11 | Un-P1-D11 | Yes | |
| Disk drive 12 | Un-P1-D12 | Yes | |
| Disk drive 13 | Un-P1-D13 | Yes | |
| Disk drive 14 | Un-P1-D14 | Yes | |
| Disk drive 15 | Un-P1-D15 | Yes | |
| Disk drive 16 | Un-P1-D16 | Yes | |
| Disk drive 17 | Un-P1-D17 | Yes | |
| Disk drive 18 | Un-P1-D18 | Yes | |
| Disk drive 19 | Un-P1-D19 | Yes | |
| Disk drive 20 | Un-P1-D20 | Yes | |
| Disk drive 21 | Un-P1-D21 | Yes | |
| Disk drive 22 | Un-P1-D22 | Yes | |
| Disk drive 23 | Un-P1-D23 | Yes | |
| Disk drive 24 | Un-P1-D24 | Yes | |
